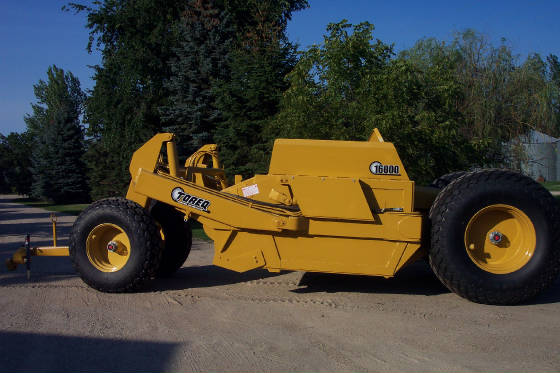

This model is designed for maximum flotation capabilities and with extended sidewalls for large-scale earth moving projects. It is engineered utilizing heavy-duty reinforced framework and industrial components to withstand the demands of continual operation in any application.

 Capacity Heaped..16.3 Cubic Yards (12.56 Cubic Meters)
Capacity Struck..13.8 Cubic Yards (10.63 Cubic Meters)
Width of Cut..104 Inches (265 cm)
Overall Width..122 Inches (311 cm)
Depth of Cut..13 Inches (33 cm)
Depth of Spread..0-20 Inches (0-51 cm)
Ground Clearance (cutting edge)..20 Inches (51 cm)
Apron Opening..58 Inches (147 cm)
Overall Length..354 Inches (899 cm)
Wheel Base..208 Inches (530 cm)
Overall Height..93 Inches (236 cm)
Weight..15,500 Pounds (7,031 kg)
Tire Size (Front)..18.4 X 26 R-3 Tread 10 Ply
Tire Size (Rear)..24.5 X 32 R-3 Tread 12 Ply
Cutting Edge..3-piece Carbon Steel .750 Inches Thick (1.9 cm)

Hydraulic Specifications
Requires 3-Spools
Bowl Lift Cylinders..4.5 X 24 (2)
Front Gate Cylinders..3.5 X 13 (2)
Soil Ejection Cylinders..4.5 X 63 (1)
Approximate Tractor Size..300-400 HP (Rubber Tire)
150-200 HP (Crawler)
Standard Features
360 Degree Swivel Hitch
Knuckle Block Steering Hitch
Industrial Style Cylinders
18 Inch Rear Spill Plate
Tire Stem Protectors
Drop Front Dolly
Rear Push Plate
Frost Blades
Sequenced Hydraulic Circuits
Tire Sizes
Hydraulic Mast Cylinder Mount

Consult Price List or Factory for Option Details.
