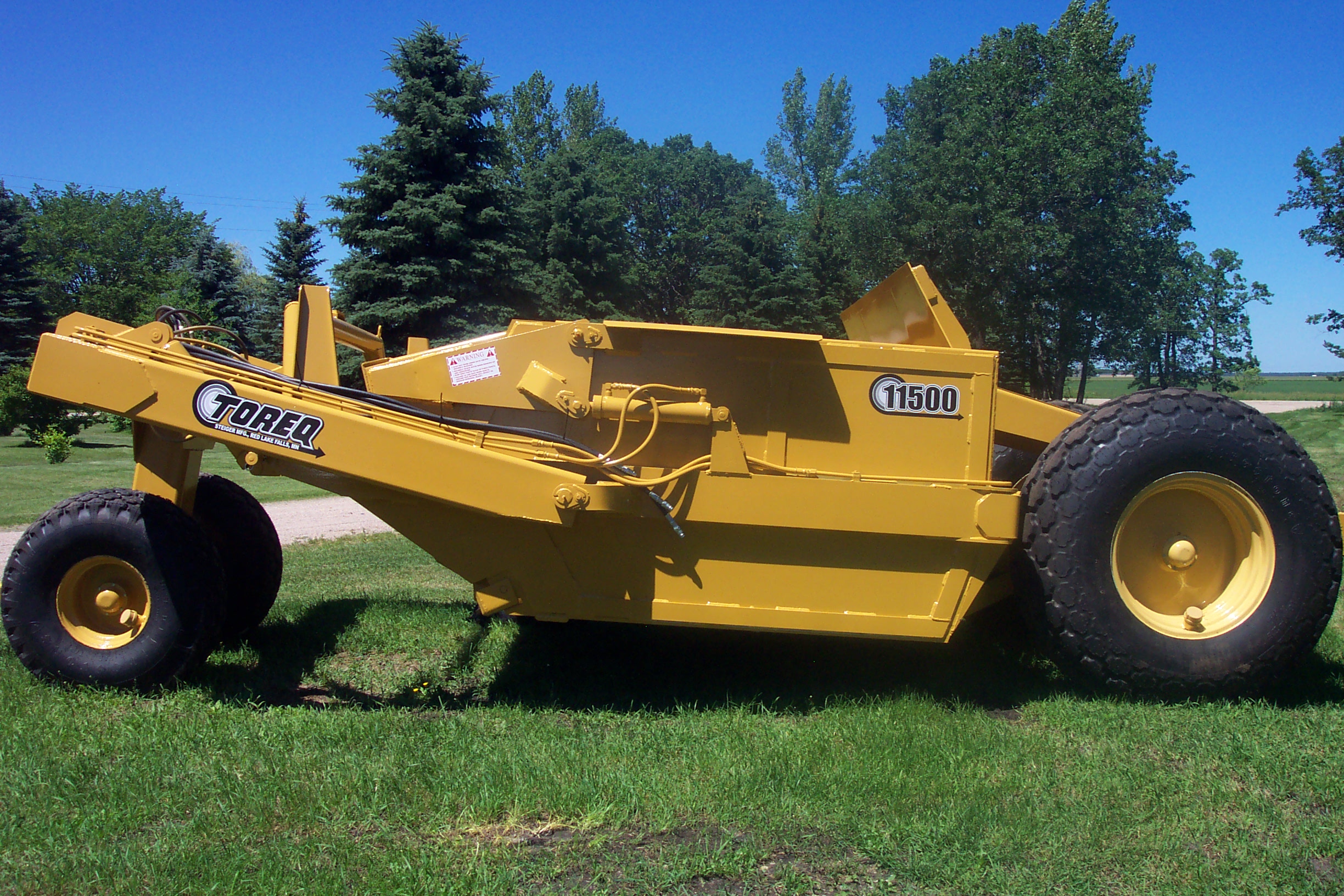

The capacity and profile of this model fits the requirements of larger front wheel assist and 4-wheel drive tractors. It is designed with a lower center of gravity for increased side slope stability. 150-250 horsepower rubber tire tractors or 50-75 horsepower crawlers are its prime movers.

Capacity Heaped..11.5 Cubic Yards (10.5 Cubic Meters)

Capacity Struck..8.6 Cubic Yards (11.15 Cubic Meters)

Width of Cut..98 Inches (249 cm)

Overall Width..116 Inches (295 cm)

Depth of Cut..10 Inches (25.5 cm)

Depth of Spread..0-15 Inches (0-38 cm)

Ground Clearance..17 Inches (43 cm)

Apron Opening..59 Inches (149cm)

Overall Length..306 Inches (777 cm)

Wheel Base..196 Inches (498 cm)

Overall Height..80 Inches (187 cm)

Weight..10,500 Pounds (4,590 kg)

Tire Size (Front)..16.5 X 16.1 R-3 Tread 10 Ply

Tire Size (Rear)..18.4 X 26 R-3 Tread 10 Ply

Cutting Edge..3-Piece Carbon Steel .625 Inches Thick (1.6 cm)

Hydraulic Specifications

Requires 3-Spools

Bowl Lift Cylinders..4.0 X 18 (2)

Front Gate Cylinders..3.0 X 13 (2)

Soil Ejector Cylinders..4.0 X 62 (1)

Approximate Tractor Size..150-250 HP (Rubber Tire)

50-75 HP (Crawler)

Standard Features
360 Degree Swivel Hitch
Knuckle Block Steering Hitch
Industrial Style Cylinders
18 Inch Rear Spill Plate
Tire Stem Protectors
Drop Front Dolly
Frost Blades
Sequenced Hydraulic Circuits
Tire Sizes
Hydraulic Mast Cylinder Mount

Consult Price List or Factory for Option Details
