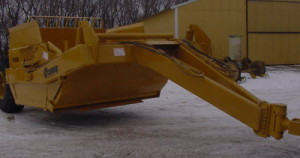

Commercial and/or private operators have the option of utilizing a direct-mount model for large-scale projects with this scraper.
Industrial hydraulic cylinders, tires and components along with heavy-duty reinforced framework, floor and gates achieve
the durability requirements for any earth moving application.
Specifications
Capacity Heaped...14 Cubic Yards (10.78 Cubic Meters)
Capacity Struck...11.2
Cubic Yards(8.63 Cubic Meters)
Width of Cut...104 Inches (265 cm)
Overall Width...122 Inches (311 cm)
Depth of
Cut...13 Inches (33 cm)
Depth of Spread...0-17 Inches (0-43 cm)
Ground Clearance at Cutting Edge...17 Inches (43 cm)
Apron Opening...54 Inches (138 cm)
Over Length...352 Inches (898 cm)
Wheel Base...298 Inches (757 cm)
Overall
Height...88 Inches (224 cm)
Weight...14,500 Pounds (6,670 kg)
Tire Size (Rear)...23.5 X 25 12 Ply
Cutting Edge...3-Piece
Carbon Steel .750 Inches Thick (1.9cm)
Hydraulic Specifications..
Requires 3-Spools
Bowl Lift Cylinders...4.5 X 18 (2)
Front Gate Cylinders...3.0 X 13 (2)
Soil
Ejection Cylinders...4.5 X 61 (1)
Approximate Tractor Size..150-450 HP (Rubber Tire)
75-150 HP (Crawler)
STANDARD FEATURES
360 Degree Swivel Hitch
Industrial Style Cylinders
18 Inch Rear Spill Plate
Tire Stem Protectors
OPTIONS
Frost Blades
Sequenced Hydraulic Circuits
Tires
Sizes
Hydraulic Mast Cylinder Mount
Consult Dealer for Option Details
|
 |
|
